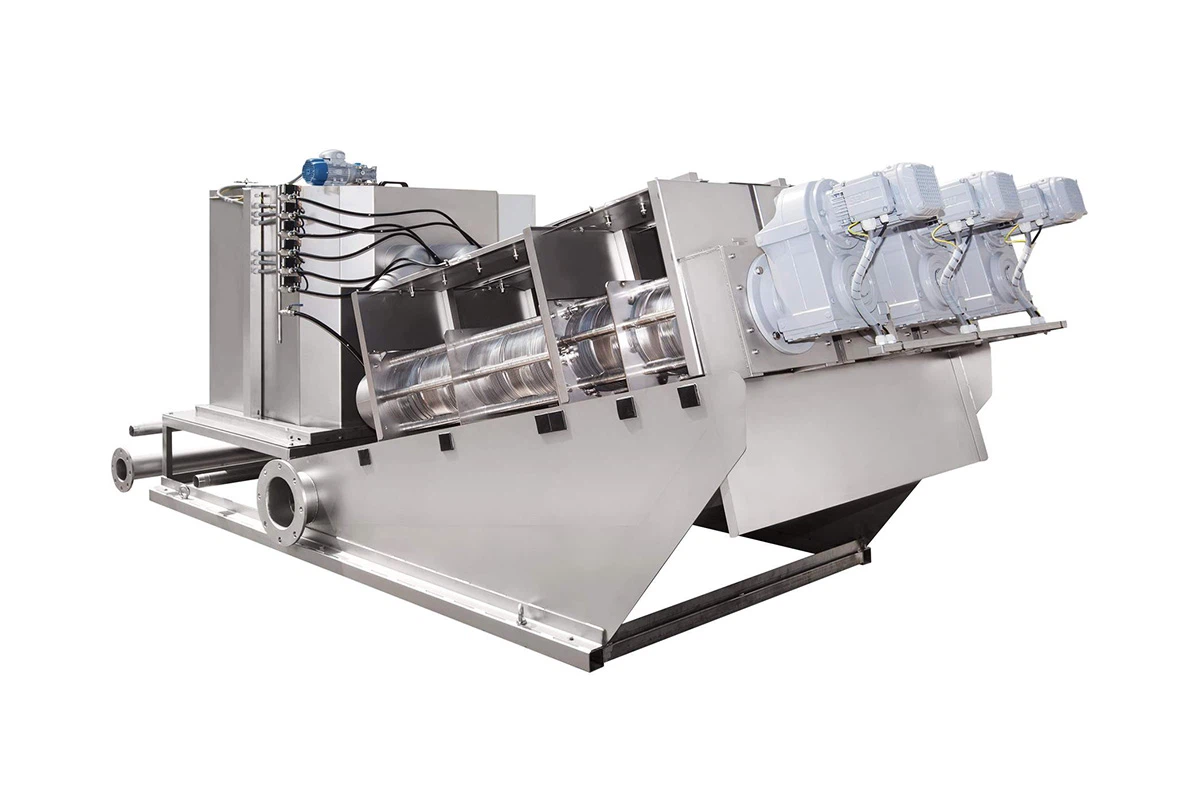

Sludge Dewatering Screw Press
0.5-2% sludge at inlet, 15-20% sludge at outlet
Low noise and vibration levels
Wide use applications
Reliable technology,High efficiency and energy saving
Economical operation also for smaller WWTP (already from 500 equivalent)
High quality workmanship, manufactured in china
Sludge Dewatering Screw Press
Sludge dewatering screw press is a kind of equipment for solid-liquid separation, mainly used to treat the sludge produced in the sewage treatment process. This equipment removes the water in the sludge by means of spiral extrusion to achieve the purpose of reduction and facilitate subsequent treatment.
|
Model |
PZS710 |
PZS800 |
PZS900 |
PZS1000 |
PZS1120 |
PZS1200 |
PZS1325 |
|
Screw diameter [mm] |
710 |
800 |
900 |
1,000 |
1.120 |
1,200 |
1,325 |
|
Continuously permitted press [kN] |
80,000 |
100.000 |
128.000 |
160,000 |
200,000 |
230.000 |
280,000 |
|
Die-to-die blow force [kN] |
100,000 |
126,000 |
160,000 |
200.000 |
250,000 |
290.000 |
360.000 |
|
Gross working capacity PSM [kJ] |
1,150 |
1,650 |
2.250 |
3,150 |
4,000 |
5,000 |
7,000 |
|
Gross working capacity PSH [kJ] |
2,200 |
3,000 |
4,000 |
6,000 |
6,800 |
8,500 |
10,000 |
|
Stroke rate max. [min-1] |
10 |
9 |
9 |
8 |
8 |
7 |
4 |
|
Distance bed - slide max. [mm] |
1,200 |
1,700 |
1,800 |
2,000 |
2,000 |
2,200 |
2,300 |
|
Bolster width [mm] |
1,600 |
2,050 |
2,100 |
2.400 |
2,400 |
2,600 |
3,100 |
|
Bolster depth [mm] |
2,000 |
2.000 |
2,200 |
3,000 |
3,000 |
3,000 |
3,700 |
The Main Features and Advantages of Sludge Dewatering Screw Press Include
- High efficiency dehydration: The screw filter press can effectively squeeze out the water in the sludge, significantly reducing the volume of the sludge, reducing subsequent treatment and transportation costs.
- Continuous operation: Equipment design allows continuous feed and discharge, suitable for large-scale sludge treatment.
- Low energy consumption: Compared with traditional centrifugal dewatering equipment, the screw filter press has lower energy consumption and more economical operating costs.Simple structure, easy maintenance: the equipment structure is relatively simple, fewer parts, easy maintenance, reliable operation.
- Strong adaptability: Suitable for all types of sludge, including municipal sludge, industrial sludge and other high water content solid waste.
Operating Principle
The working principle of the sludge dewatering spiral filter press is to use the rotation of the spiral shaft to transport the sludge from the feed port to the discharge port. In the conveying process, as the diameter of the spiral shaft gradually increases, the pitch gradually decreases, the pressure on the sludge gradually increases, and the water is extruded and discharged through the filter screen. The dehydrated solid sludge is discharged from the discharge port and enters the next treatment process.
Application Area
- Municipal sewage treatment plant: treatment of sludge from municipal domestic sewage.Industrial wastewater treatment: treatment of wastewater sludge generated in various industrial production processes, such as food processing, chemical, pharmaceutical and other industries.
- Agricultural wastewater treatment: treatment of sludge produced by agricultural wastewater, such as farm wastewater treatment.
Sludge dewatering screw press has played an important role in improving the efficiency of sludge treatment, reducing the treatment cost and environmental impact, and has become one of the important equipment in the sewage treatment industry.
